Applicable industries: wooden crafts, woodworking furniture, advertising industry, batch processing of sheet metal products industry
Applicable materials: organic glass, PVC board, KT board, wood board, synthetic board, acrylic, metal and other materials
Advantages:
(1) High-power spindle point machine for high-efficiency processing
(2) Compatible with Beijing Jingdiao/Wentai/CAD/Type3/Artcam and other software
(3) The bed and gantry are welded with steel structure seamlessly Machine high temperature aging treatment, strong steel, no deformation.
(4) Engraving machine Z-axis back triangle structure installation technology, guide rail triangle structure layout, greatly reduce the resonance generated by the Z axis, improve the service life of the guide rail slider, and improve the engraving accuracy.

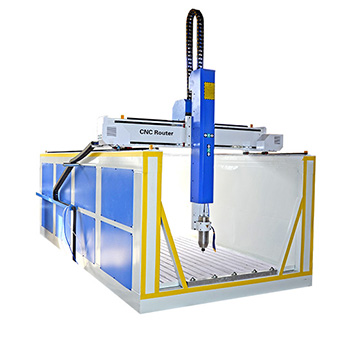

Product Name/Model | Polystyrene Foam CNC Router, SL-1325P |
Working size | 1300*2500*800mm |
Re-position accuracy | ＜0.05mm/1000mm |
Table/gantry structure | Aluminum T Slot+PVC，Steel pipe gantry |
Machine body | Welded with square pipe (with horseshoe) |
Motor & Driver | Stepper （Hybrid Servo/Servo are optional） |
Spindle Power | 2.2KW,3.0KW,5.5KW water/air cooling（optional） |
Spindle RPM | 6000-24000r/min |
Working Voltage | 220V 50hz/380V50hz |
Command Code | G Code、F/S command is compatible |
Max running speed | 15M/Min |
Transmission mode | Gear wheel for XY axis, ball screw for Z axis |
Control system | NcStudio/RichAuto/Mach3(optional) |
Frequency Converter | Best |
Square mode | 20/25 Square Linear Guide Rail（optional） |
Material Fixing way | Clamp |
Dimension | 3000*2000*2000mm |
Weight | 1000kg |
Machine color | Black and Red /Blue and White(optional) |
